Chain Actuators

Category: Actuators

Chain actuators sit inside the window frame and push the sash open: the everyday tool of natural ventilation and the life-safety muscle of smoke and heat extraction systems. DNH supplies two Italian specialists: UCS, whose chain actuators serve both daily ventilation and certified RWA fire-safety duty, and Topp, window and door automation specialists since 1996, with actuators for windows, domes and skylights certified to EN 12101-2 for smoke evacuation.

Key advantages

Ventilation and fire safety in one

The same certified actuators handle daily natural ventilation and EN 12101-2 smoke and heat extraction.

Force where it countse

Chain forces up to 600 N, locking strength up to 5,000 N, and strokes up to 1,000 mm.

Fits the frame

Slim profiles from 24 x 35 mm, concealed brackets, and dual-chain models for large sashes.

Every window type

Swinging, top-hung and bottom-hung windows, domes, skylights and louvres, in 24 V DC and 230 V AC.

Product range

An overview of key product specifications. Compare products across our product range and partner brands to find the right fit for your application.

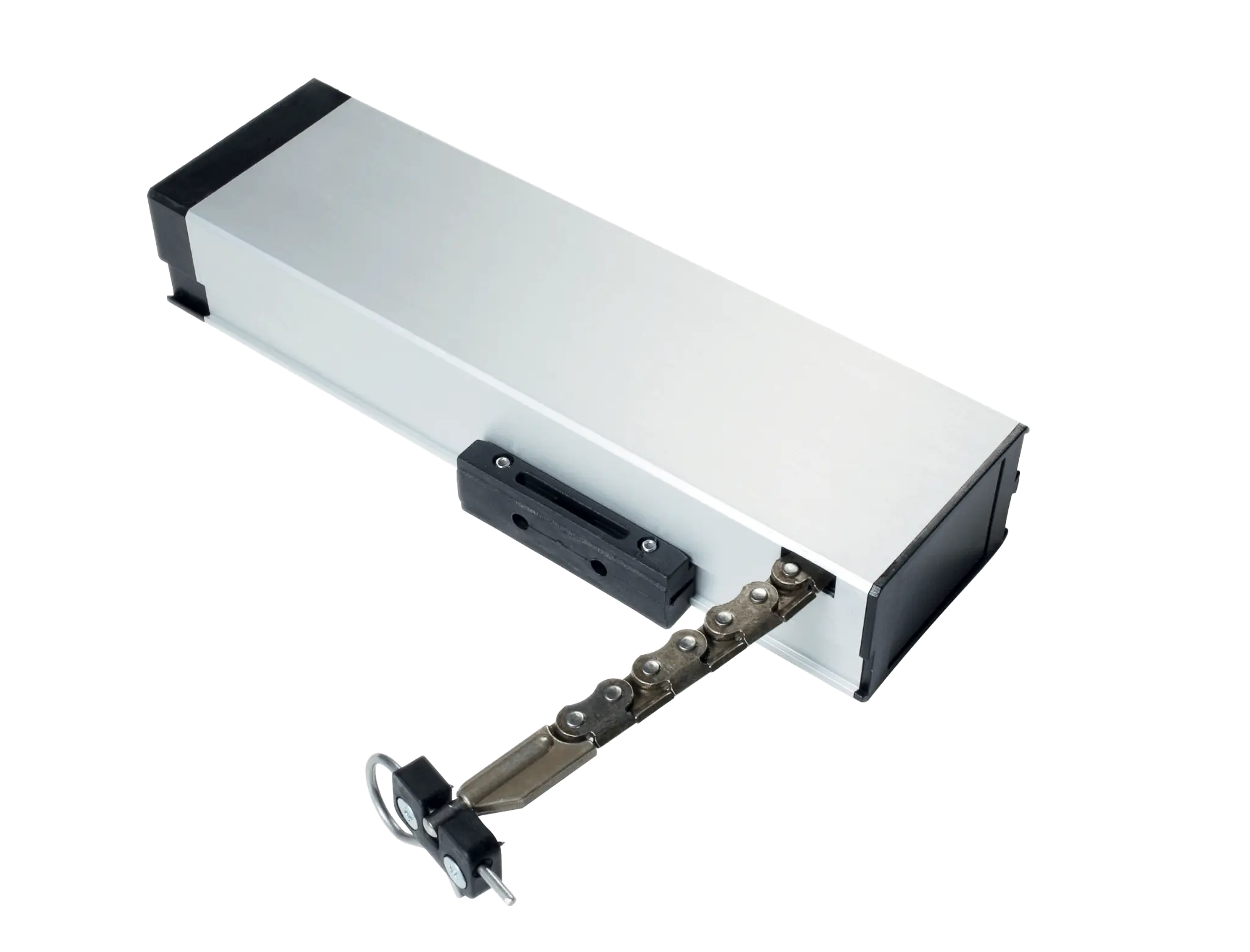

UCS: Chain / Window Actuators

UCS Chain / Window Actuator

UCS electric chain actuators open windows, skylights and louvres for controlled natural ventilation, and double as smoke and heat extraction (RWA) actuators within certified fire-safety systems with dedicated control panels.

The range runs from the slim NANO to the dual-chain TWIN QUASAR, with chain forces up to 600 N and locking strength up to 5,000 N.


NANO
QUASAR
QUASAR L
VEGA
TWIN QUASAR
TWIN VEGA
SIRIUS
SINTESI 2000
SUPER-MASTER
Voltage
24 V DC
24 V DC / 120–230 V AC
24 V DC / 120–230 V AC
24 V DC / 120–230 V AC
24 V DC / 120–230 V AC
24 V DC
24 V DC / 230 V AC
230 V AC
24 V DC/ 230 V AC
max Force
400 N
300 N
300 N
300 N
600 N (dual chain)
600 N (dual chain)
300 N
180 N (250mm), 90 N (380mm)
400 N
Locking force
1,900 N
3,000 N
3,000 N
2,500 N
5,000 N
5,000 N
1,200 N
2,500 N
2,500 N
Stroke
200–800 mm
500 mm
600–1,000 mm
300 mm
500 mm
300 mm
130–400 mm
250–380 mm
450–800 mm
Opening speed
4–14 mm/s
15 mm/s
15 mm/s
9 mm/s
15 mm/s
9 mm/s
7 mm/s
40 mm/s
23 mm/s (AC), 20 mm/s (DC)
Duty cycle
30%
50%
50%
50%
50%
50%
30%
5%
5% (AC) / 20% (DC)
IP rating
IP40
IP40
IP40
IP30
IP40
IP30
IP40
IP20
IP20
Chain type
Single: FLEX (90°) or straight
BOW CHAIN (up to 90°) or straight
BOW CHAIN (up to 90°) or straight
Straight
Dual straight chain
Dual straight chain
Single straight chain
Single straight chain
Single straight chain
Key feature
Smallest profile; 24×35mm; versatile install
Standard; die-cast alu; DRAW BRIDGE option
Long stroke up to 1,000mm; larger housing
Compact; single-stroke; slim profile
Highest chain force; synchro large vents
Compact dual chain; smaller vents
Concealed brackets; customisable cover panel
Classic AC; high speed; coupling for dual install
Longest stroke; dual coupling; AC + DC
← Scroll to see more →





Topp: Chain Actuators - Window Automation

Topp Chain Actuators - Window Automation

Topp electric chain actuators automate swinging, top-hung and bottom-hung windows for natural ventilation.

Eleven models run from the compact C20 to dual-chain and swing variants, with 24 V DC and 230 V AC versions, strokes up to 1,000 mm and IP ratings up to IP66.


C20
C30
C40
C50
C60
ACK4
C130
C160
C240
C260
A90
Voltage
230 V AC / 24 V DC
230 V AC / 24 V DC
230 V AC / 24 V DC
230 V AC
230 V AC / 24 V DC
230 V AC / 24 V DC
230 V AC / 24 V DC
230 V AC
230 V AC / 24 V DC
230 V AC
230 V
Max load in thrust
300 N
300 N
400 N
300–500 N
250–300 N
300 N
300 N
50–300 N
400 N
600 N
400 N
Max load in traction
200 N
300 N
400 N
500 N
200 N
300 N
200 N
200 N
300 N
600 N
400 N
Stroke
240 / 360 mm
200 / 380 mm
100–500 mm
600–1000 mm
510 / 600 mm
100–400 mm
360 mm
360–1000 mm
360 mm
600 mm
Swing 90° opening
Opening speed
8 mm/s (230V), 7.5 mm/s (24V)
37 mm/s (230V), 22 mm/s (24V)
18.5 mm/s (230V), 10.5 mm/s (24V)
10.3–13.2 mm/s
8 mm/s (230V), 7.5 mm/s (24V)
27 mm/s (230V), 17 mm/s (24V)
8 mm/s (230V), 7.5 mm/s (24V)
8 mm/s
8 mm/s (230V), 7.5 mm/s (24V)
13 mm/s
13.3 mm/s (opens in 32 s)
Duty cycle
S2 4 min
S2 4 min
S2 5–8 min
S2 4 min
S2 4 min
S2 2–3 min
S2 4 min
S2 4 min
S2 4 min
S2 4 min
S2 4 min
IP rating
IP30
IP30
IP55
IP30
IP30
IP55
IP30
IP30
IP30
IP30
IP30
Chain type
Single push, double-link
Single push, encoder
Single push, encoder
Single push, slim profile
Single push, double-link
Single push, compact
Single push, slim profile
Single push, multi-stroke
Dual push points
Dual push points
Swing actuator (90° pivot)
Key feature
Slim 34×48 housing; fast hook & adjust
High-speed, top/bottom hung
Long stroke options; IP55
Up to 1000 mm stroke; skylights & sync
510–600 mm stroke; slim
Compact 288 mm body; best for IP55
Slim profile, top-hung
Versatile: 360–1000 mm; multi-position
Dual push 400 N; large sashes 1.2–1.5 m
Dual push 600 N; heavy frames 1.5–2 m
EN 12101-2; swing windows up to 90°
← Scroll to see more →





Topp: Chain Actuators - Smoke Evacuation

Topp Chain Actuators — Smoke Evacuation

For smoke and heat extraction systems, Topp supplies chain actuators certified to EN 12101-2, opening vents in 60 seconds or less in an emergency.

Dual-chain and swing variants handle large sashes and 90-degree openings.


C50 RWA
ACK4 RWA
C160 RWA
C160 RWA Dual
A90 RWA
Voltage
24 V DC
24 V DC
24 V DC
24 V DC
24 V DC / 230 V AC
Max load in thrust
300–500 N
300 N
50–300 N
400–600 N
400 N
Max load in traction
500 N
300 N
200 N
300–400 N
400 N
Stroke
600 / 800 / 1000 mm
100–400 mm
360 / 600 / 1000 mm
360 / 600 mm
Swing 90° opening
Opening speed
10.3–13.3 mm/s
17 mm/s
7.5–10 mm/s
7.5 mm/s (360), 13 mm/s (600)
13.3 mm/s (opens in 32 s)
Duty cycle
S2 4 min
S2 3 min
S2 4 min
S2 4 min
S2 4 min
IP rating
IP30
IP55 (IP66 opt.)
IP30
IP30
IP30
Chain type
Single push, slim profile
Single push, compact
Single push, multi-stroke
Dual push points
Swing actuator (90° pivot)
Key feature
EN 12101-2; ≤60 s opening; skylights
EN 12101-2; IP55 (IP66 optional)
EN 12101-2; multi-stroke flexibility
EN 12101-2; large sash dual push
EN 12101-2; swing windows up to 90°
← Scroll to see more →

Why these brands

DNH supplies two complementary Italian ranges. UCS chain actuators are built for dual duty: everyday natural ventilation and smoke and heat extraction within certified fire-safety systems, with dedicated control panels and actuators tested in fire conditions. Topp has specialised in window and door automation since 1996, with chain, rack and linear actuators for windows, domes and skylights, and RWA models certified to EN 12101-2.

Choose UCS where ventilation and fire safety share one system. Choose Topp where window geometry leads: eleven chain models cover swinging, top-hung and bottom-hung sashes, plus dual-chain and swing variants. DNH supports specification and supply either way.

UCS
Topp

Typical Applications

This product range is deployed across multiple sectors.

Natural ventilation Smoke & heat extraction (RWA) Windows & facades Skylights & roof domes Louvres Smoke & heat extraction (RWA) Residential & commercial buildings Public & industrial buildings
